IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V

Place of Origin : Guangdong, China

Brand Name : KSPOWER

Certification : UL cUL CE Class P ENEC Gs TYPE HL...

MOQ : 2 pieces

Price : $2.90-27.80/pieces

Warranty(Year) : 5-Year

Color : Black, Silver

Current : 1.25A-6.67A

Lighting solutions service : Lighting and circuitry design

Input Voltage(V) : 100-277V

Product Name : 12V 24V low voltage landscape lighting transformer

Application : Street Light, Tunnel Light, Wall Lamp,Spot Light

Warranty : 5 Years

Output Mode : Pwm Output

Efficiency : 95%

Output : 12V 24V

Material : Aluminium Case

IP Rate : IP65; IP67

Dimming mode : Phase-Cut/Triac Dimming

Contact Now

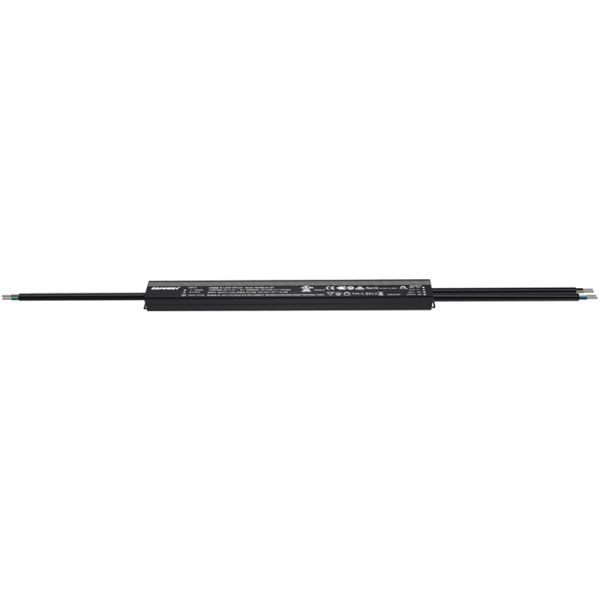

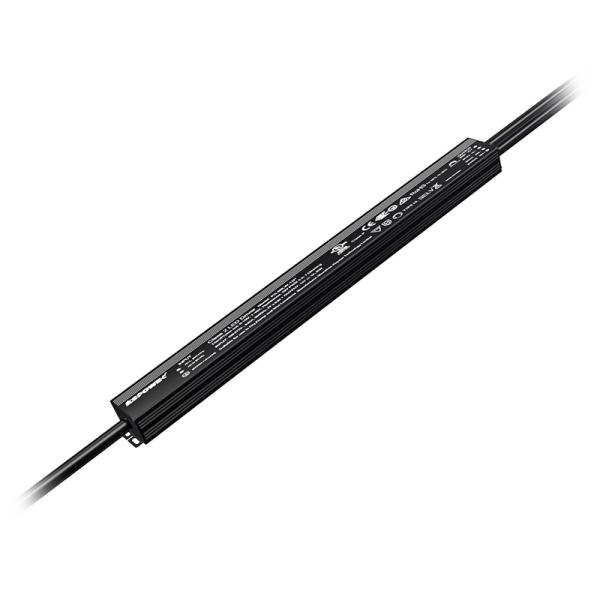

IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
Products Description
triac phase-cut dimming UL Class2 96W 80W 60W 220v 12v ac pool light transformer led dimmer 24v 12v pool light transformers
The KSPOWER - LT series triac dimmable led driver 60 80 96 Watt is one constant voltage solution, single channel, accept universal AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt compatible with most AC wall dimmers including Lutron, Leviton and most other household dimmers. The class 2 dimming power transformer use low profile metal aluminum case, dry and damp, makes the dimmable led driver power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 2K frequency PWM output and IP65 waterproof environment protection rated for indoor or outdoor use, the phase dimmable led driver provide 5 years warranty and outstanding led dimming performance.
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with input and output wire
* Dimming: Triac/ Phase-cut, PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Note:Any custom label/package/case is acceptable, provide OEM and ODM service
Input Voltage
100~277V AC 47~63Hz
Power Factor
PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load
NO.
KSLT
Output Voltage
12V/ 24V/36V/48V
Rated Current
0.62A-8.33A
Rated Power
30W 40W 60W 80W 96W
Ripple & Noise (max.)
200mVp-p/ 250mVp-p
Certification
UL/cUL CE FCC RoHS ENEC GS
Dimming Connect Drawing
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
NOW,GET MORE INFORMATIONS OF US !
Company Profile
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V

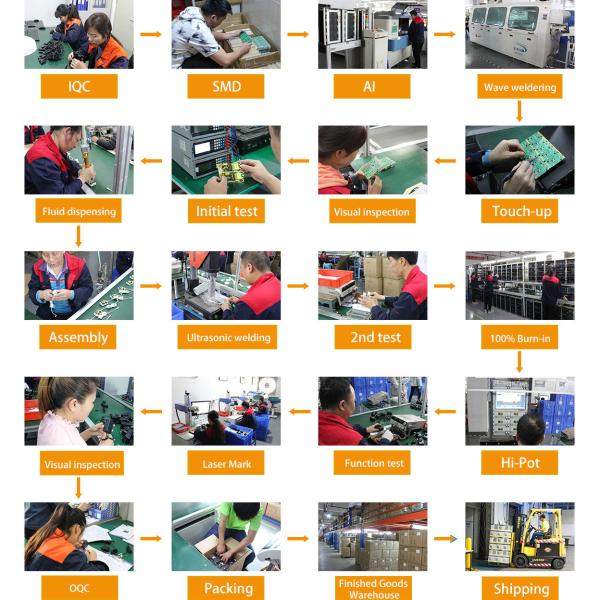

Working Room
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
Specification:
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
Nearly ¥3 Million Is Spent On Certification, Just To Make Customers Trust Our Quality
Exhibition
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
Product packaging
1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.
Package
Piece/Carton(pcs)
Piece Weight(KG)
OEM package
50
0.26
Dimension/Brown Box(mm)
Dimension/Carton(mm)
Gross Weight/Carton(KG)
155*85*35
455*370*175
14
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
FAQ
IP67 UL Triac Phase Cut Dimming LED Pool Light Transformers Class 2 60W 220V 12V AC 24V 12V
