Protection OVP Triac Dimmable LED Driver 277V AC PWM Output Phase Cut 200W 300W 48V

Product Categories
Shenzhen Keysun Technology Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

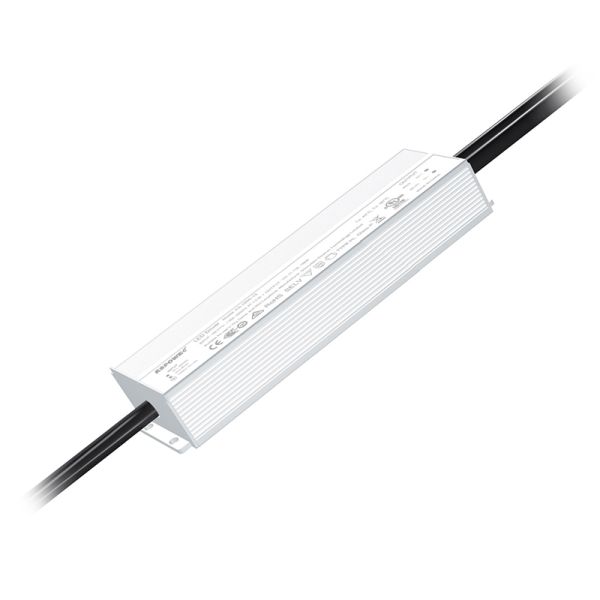

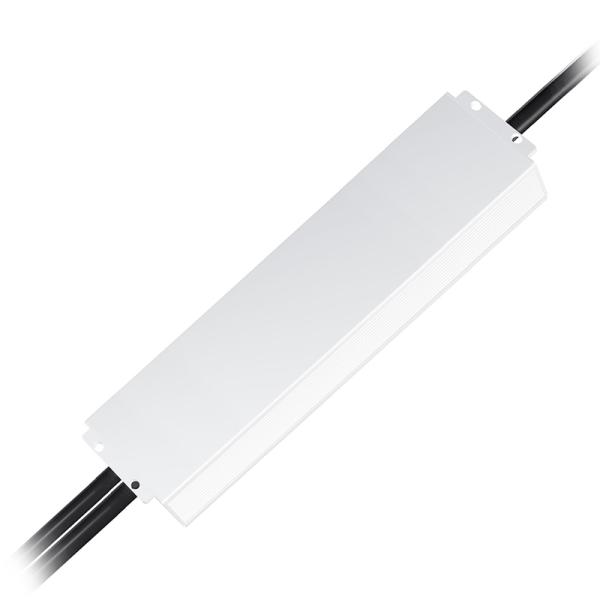

Protection OVP Triac Dimmable LED Driver 277V AC PWM Output Phase Cut 200W 300W 48V

Place of Origin : Guangdong, China

Brand Name : KSPOWER

Model Number : KSHT

Certification : UL/cUL FCC CE ROHS SAA CLASS P etc.

MOQ : 5 pieces

Price : $45.20/pieces 5-499 pieces

Warranty(Year) : 5-Year

Lighting solutions service : Lighting and circuitry design

Output Power : 300W

Output Type : PWM

Input Voltage : 100-277V

Output Frequency : 50/60Hz

Output Current : 8.33A/ 5.55A/ 4.16A/16.66A/12.5A

Product Name : 48volt 36volt 24v triac dimming led driver

Output : 12V 24V 36V 48V 30w 40w 50w 80w 90w 100w 200W 300W

Dimming mode : Traic Dimmable

Application : LED Strip Light,Pendants, Linears,Cove Lights

Material : Aluminum Case

Warranty : 5 years

Protection : OCP, OVP, SCP, OTP

IP Rate : IP65, IP67

Efficiency : ≥91%

Contact Now

Protection OVP Triac Dimmable LED Driver 277V AC PWM Output Phase Cut 200W 300W 48V
Products Description
110-277Vac PWM Output Triac Phase cut lighting transformer 200 watt led driver 300w 48volt 48v 24volt 36volt 12volts driver led
The KSPOWER - HT series phase cut dimmable led driver 30w 40w 50w 60w 70w 80w 90w 100w 120w 130w 140w 200w 300Watt is one constant voltage solution, accept universal AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt 36Volt 48Volt optional with greater operating efficiency and PFC function.
The phase dimming led power supply use low profile metal aluminum case with or without junction box makes the ac dimmable led power supply solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 10K frequency PWM output and IP67 rated waterproof environment protection rated for indoor or outdoor use, the led lights power supply provide 5 years warranty and outstanding led dimming performance.
Protection OVP Triac Dimmable LED Driver 277V AC PWM Output Phase Cut 200W 300W 48V
Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
* Dimming: TRIAC or MLV / ELV Phase Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

Note:Any custom label/package/case is acceptable, provide OEM and ODM service
Input Voltage
100~277V AC 47~63Hz
Power Factor
PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, 80% with load
NO.
KSH
Output Voltage
12V/24V/36V/48V
Rated Current
0.83A-16.66A
Rated Power
30w 40w 50w 60w 70w 80w 90w 100w 120w 130w 140w 200w 300w
Ceryification
UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Ripple & Noise (max.)
200mVp-p / 250mVp-p
Show Details
Protection OVP Triac Dimmable LED Driver 277V AC PWM Output Phase Cut 200W 300W 48V
Protection OVP Triac Dimmable LED Driver 277V AC PWM Output Phase Cut 200W 300W 48V
Protection OVP Triac Dimmable LED Driver 277V AC PWM Output Phase Cut 200W 300W 48V

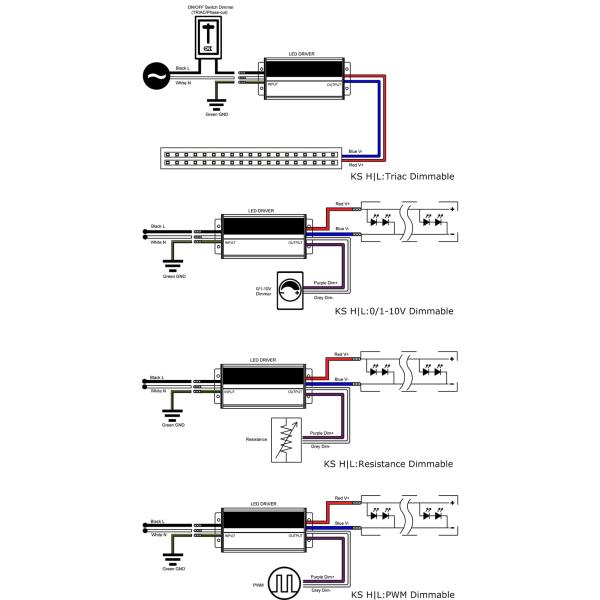

Dimming Connect Drawing
Protection OVP Triac Dimmable LED Driver 277V AC PWM Output Phase Cut 200W 300W 48V
Applications
Protection OVP Triac Dimmable LED Driver 277V AC PWM Output Phase Cut 200W 300W 48V
Protection OVP Triac Dimmable LED Driver 277V AC PWM Output Phase Cut 200W 300W 48V
NOW,GET MORE INFORMATIONS OF US !
Company Profile
Protection OVP Triac Dimmable LED Driver 277V AC PWM Output Phase Cut 200W 300W 48V
Working Room
Protection OVP Triac Dimmable LED Driver 277V AC PWM Output Phase Cut 200W 300W 48V
Exhibition
Protection OVP Triac Dimmable LED Driver 277V AC PWM Output Phase Cut 200W 300W 48V
Certifications
Protection OVP Triac Dimmable LED Driver 277V AC PWM Output Phase Cut 200W 300W 48V
Applications
Protection OVP Triac Dimmable LED Driver 277V AC PWM Output Phase Cut 200W 300W 48V
Product packaging
1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.
Package
Piece/Carton(pcs)
Piece Weight(KG)
OEM package
50
0.26
Dimension/Brown Box(mm)
Dimension/Carton(mm)
Gross Weight/Carton(KG)
155*85*35
455*370*175
14
